Key Product Features

1. 0.5 Ton / 500 kg Rated Load Capacity

The transmission jack provides a rated load capacity of:

0.5T / 500 KG

It is designed to support and position automotive components such as:

• Transmissions
• Gearboxes
• Drivetrain components
• Underbody assemblies
• Other suitable automotive parts

The robust structure provides reliable support for professional workshop applications.

2. High Lifting Range

The jack provides a wide operating height range:

Minimum Height: 1130 mm

Maximum Height: 1940 mm

The maximum lifting height of 1940 mm makes the product particularly suitable for vehicles positioned on two-post lifts, four-post lifts, and other workshop lifting equipment.

The wide lifting range allows technicians to adjust the working height according to different vehicles and maintenance requirements.

3. Ideal for Transmission Removal & Installation

Removing or installing a vehicle transmission can be difficult because of its weight and position underneath the vehicle.

This high-lift transmission jack provides a stable support platform that helps mechanics:

• Support the transmission
• Raise the transmission
• Lower the transmission
• Position the transmission
• Align components during installation
• Move components underneath the vehicle

This helps improve efficiency and reduce unnecessary manual handling.

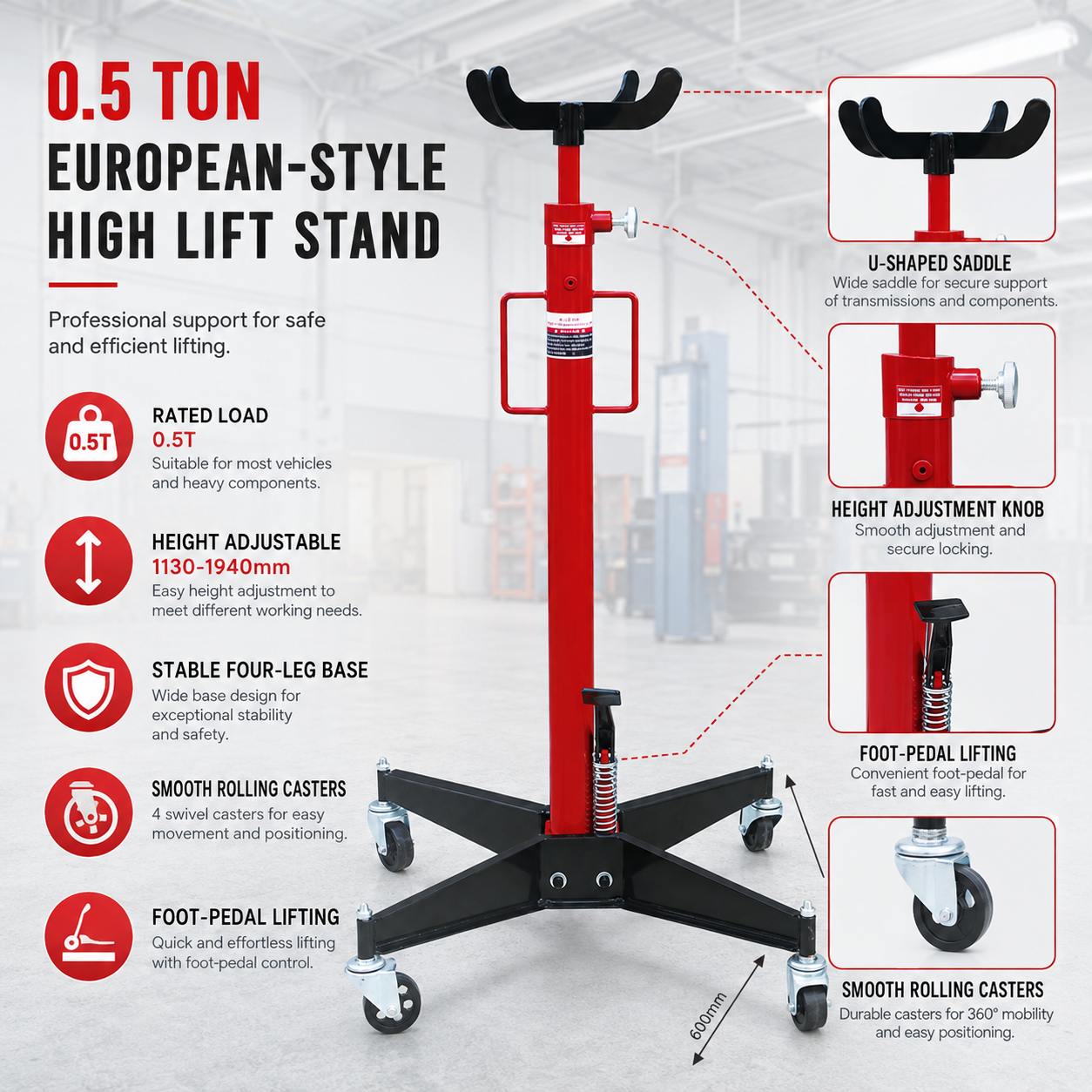

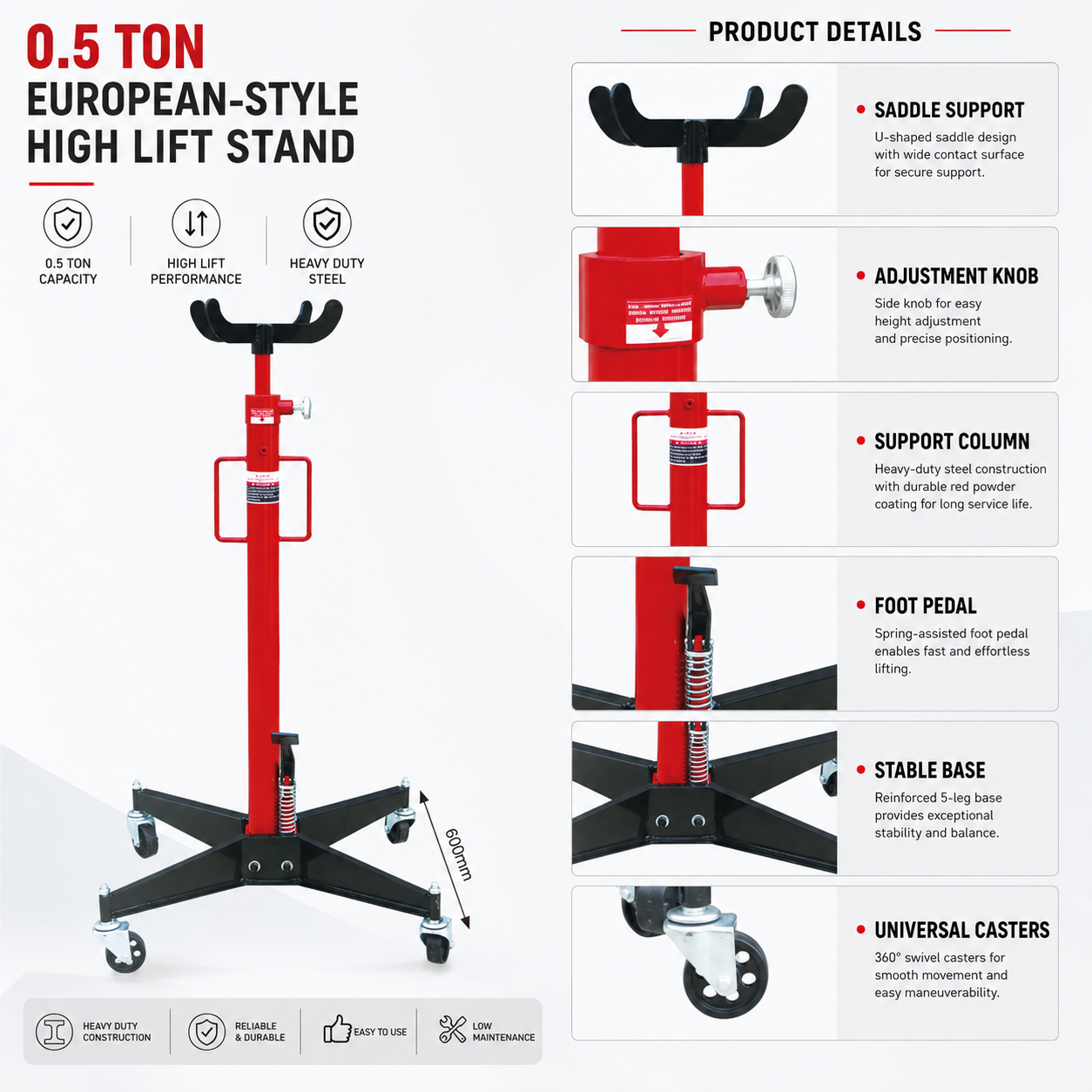

4. Adjustable Support Saddle

The top of the jack features a wide curved support saddle designed to hold automotive components securely during lifting and positioning.

The saddle design provides:

• Stable component support
• Better positioning
• Increased contact area
• Convenient alignment
• Improved operational control

The support position can be adjusted according to the component being serviced.

5. Stable Four-Leg Base

The transmission jack adopts a wide four-leg base structure.

The four extended support legs help distribute the load across a larger area, providing better stability during operation.

Main Advantages

• Wide support footprint
• Stable working platform
• Balanced load distribution
• Reduced unwanted movement
• Suitable for workshop floors

The reinforced steel base is designed for repeated professional use.

6. Four Swivel Casters

Four swivel casters are mounted at the ends of the base.

These wheels allow the jack to move smoothly around the workshop and make it easier to position the transmission underneath the vehicle.

The mobile design helps technicians:

• Move the jack easily
• Adjust positioning
• Align components accurately
• Transport the jack around the workshop
• Save time during repair operations

7. Vertical High-Lift Design

The vertical structure provides a large lifting height while maintaining a relatively compact footprint.

This makes the jack highly suitable for automotive workshops where technicians need to work underneath raised vehicles.

Compared with low-profile floor transmission jacks, the high-lift design is especially convenient when the vehicle is already raised on a workshop lift.

8. Heavy-Duty Steel Construction

The main structure is manufactured from strong steel to provide durability and structural stability.

The reinforced construction helps withstand regular workshop use and provides reliable support during transmission servicing operations.

Structural Benefits

• Strong steel construction
• High durability
• Stable lifting performance
• Suitable for frequent workshop use
• Long service life

9. Convenient Operating Handles

The jack features integrated handles positioned around the main lifting column.

These handles allow operators to move, turn, and position the jack more conveniently.

This is particularly useful when precise positioning is required underneath a vehicle.

10. Compact Workshop Design

Although the jack provides a maximum lifting height of 1940 mm, its upright construction helps minimize floor space requirements.

The combination of:

High Lifting Range + Compact Footprint + Mobile Base

makes it suitable for professional workshops where working space needs to be used efficiently.

Main Applications

The 0.5T High Lift Transmission Jack can be used for a variety of automotive repair and maintenance operations.

Transmission Removal

Supports the transmission while it is being disconnected and removed from the vehicle.

Transmission Installation

Helps raise and position the transmission during installation.

Gearbox Maintenance

Provides convenient support for gearbox removal, repair, replacement, and installation.

Drivetrain Servicing

Can assist with supporting suitable drivetrain components during maintenance.

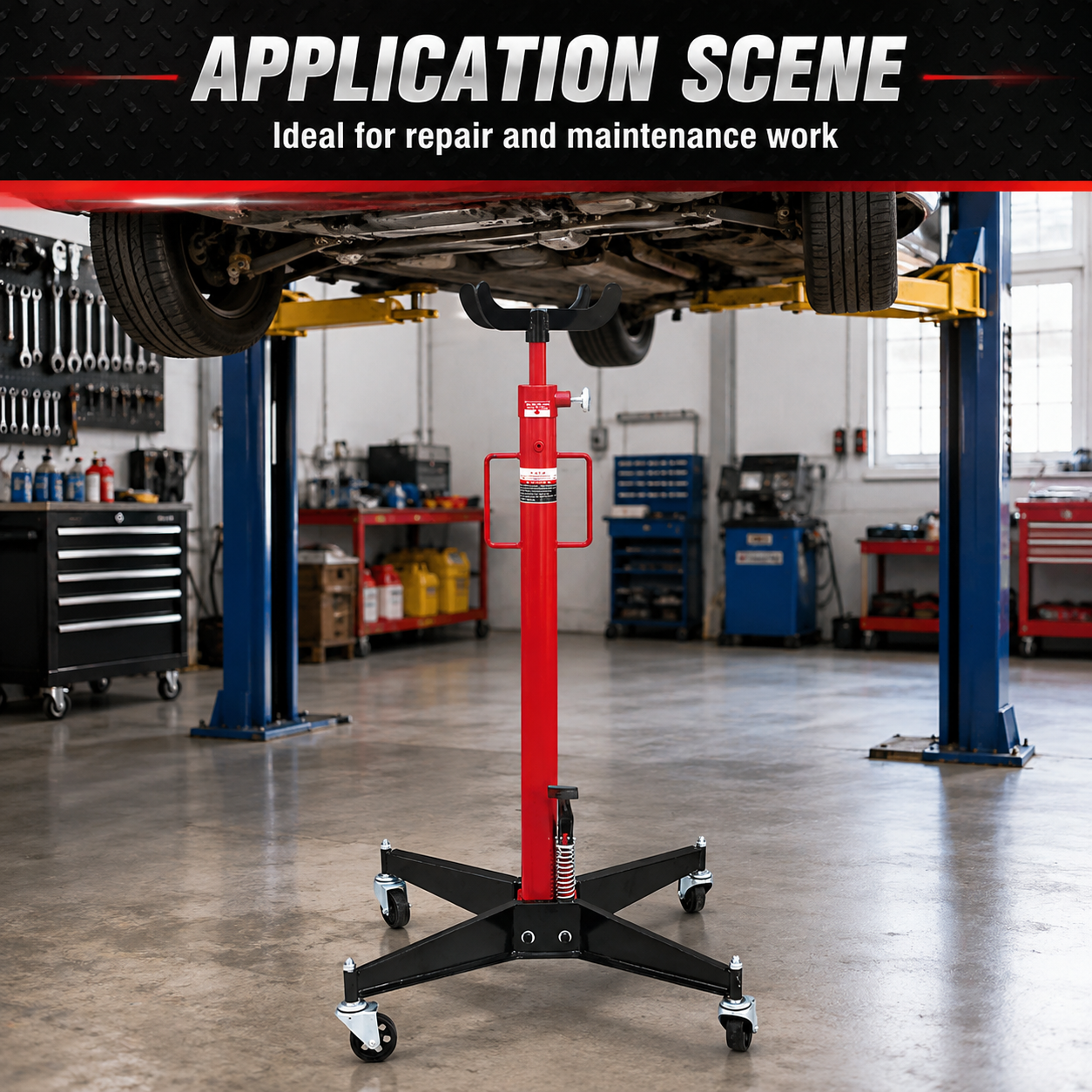

Under-Vehicle Maintenance

Ideal for working underneath vehicles raised by automotive lifts.

Suitable Working Environments

This product is ideal for:

• Auto repair shops
• Automotive service centers
• Transmission repair shops
• Vehicle maintenance workshops
• Garages
• Fleet maintenance centers
• Automotive dealerships
• Professional service stations
• Commercial vehicle workshops

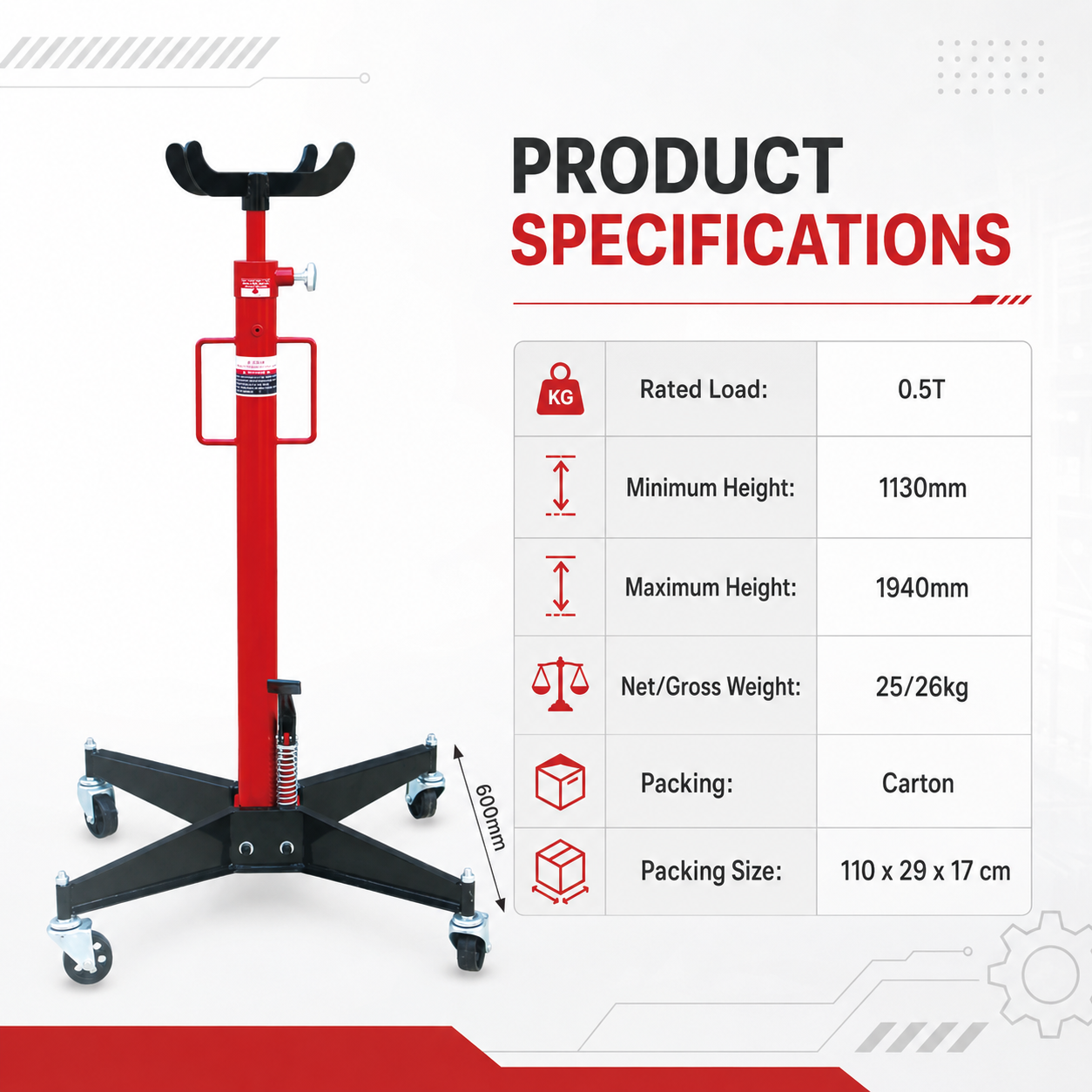

Technical Specifications
